Debugging CI/CD Builds: The Power of Diagnostic Steps in GitHub Actions

Introduction

In the ERP-1st project, like many complex applications, maintaining a robust Continuous Integration/Continuous Deployment (CI/CD) pipeline is crucial. While automated builds and deployments significantly streamline development, debugging failures within these pipelines can sometimes be tricky. Specifically, when a build step involving asset bundling doesn't produce the expected output, pinpointing the exact cause can lead to frustrating delays.

The Problem

Imagine a scenario where your application's build process includes a step to bundle various assets or compile specific components. Locally, everything works as expected, but the CI/CD pipeline occasionally fails, or worse, completes successfully without the necessary bundled output. This can lead to deployment issues where the application is missing critical files.

Without clear visibility into what happened during the bundling phase on the CI runner, developers are left guessing. Was the bundling command incorrect? Did it run in the wrong directory? Were the output files placed somewhere unexpected? The lack of diagnostic information about the bundle output can turn a seemingly simple build issue into a time-consuming investigation.

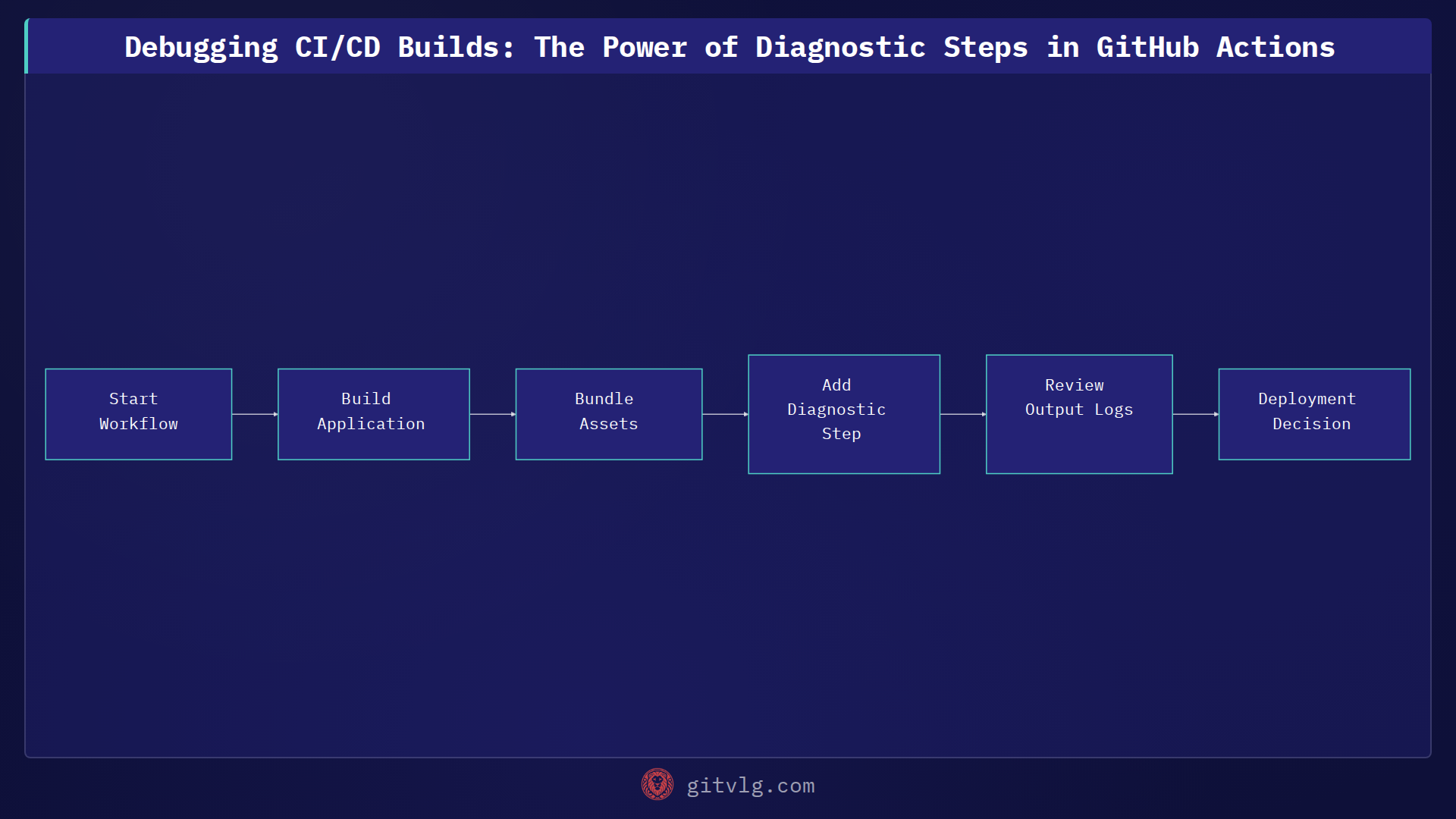

The Solution: Adding Diagnostic Steps in GitHub Actions

To combat these 'silent' failures and improve visibility, we introduced a targeted diagnostic step into our GitHub Actions workflow. The core idea is to explicitly list the contents of the relevant directories immediately after the bundling process. This provides an instant snapshot of the files generated and their location, helping to confirm if the bundling step executed as intended.

Here's a simplified example of how you might add such a diagnostic step to a GitHub Actions workflow:

name: Build and Deploy

on:
  push:
    branches:
      - main

jobs:
  build:
    runs-on: ubuntu-latest

    steps:
    - name: Checkout code
      uses: actions/checkout@v4

    - name: Setup Node.js
      uses: actions/setup-node@v4
      with:
        node-version: '18'

    - name: Install dependencies
      run: npm install

    - name: Build and bundle assets
      run: npm run build

    - name: List bundle output for diagnostics
      run: |
        echo "--- Contents of dist/ folder ---"
        ls -laR dist/ || echo "dist/ not found or empty"
        echo "----------------------------------"
        echo "--- Contents of current directory ---"
        ls -la
        echo "----------------------------------"
      # Fail the job if 'dist/' isn't found after build
      # This assumes your build command always creates 'dist/'
      # If it's optional, remove the '|| echo "..."'

    - name: Upload artifact (example)
      uses: actions/upload-artifact@v4
      with:
        name: application-bundle
        path: dist/

By adding the List bundle output for diagnostics step, we get immediate feedback on what's inside the dist/ directory (or wherever your bundled assets are expected). This immediately resolves ambiguity around missing or mislocated files.

Key Insight

Proactive diagnostic steps in your CI/CD pipelines are invaluable for quickly identifying and troubleshooting build-related issues. Don't wait for deployment failures to realize your build output is incorrect; verify it explicitly as part of your automated workflow.

Getting Started

1. Identify Critical Output Directories: Pinpoint directories where your build or bundling processes generate essential files.
2. Integrate ls Commands: Add run steps to your GitHub Actions workflow, using commands like ls -laR <directory> after relevant build steps.
3. Adjust for Context: Ensure your ls commands target the correct paths and adapt them (e.g., using find for specific file types) to get the most relevant information.
4. Review Workflow Logs: Pay close attention to the output of these diagnostic steps during pipeline runs to catch issues early.
