Streamlining Desktop Deployment with MSIX Packaging in ERP-1st

Our team working on the KamelotDeveloper/ERP-1st project has recently enhanced our application deployment strategy. This significant update focuses on integrating MSIX packaging, a modern Windows app packaging format, into our build pipeline to simplify installation and updates for our ERP application.

Introduction

Modern application development demands not just robust functionality but also seamless delivery. For desktop applications, traditional installers often come with complexities regarding installation, updates, and uninstallation. MSIX is Microsoft's universal Windows app packaging format designed to address these challenges, offering a reliable way to deploy applications securely and efficiently across Windows devices.

The Challenge

Before this initiative, deploying updates for our ERP-1st application required a more manual and less integrated process. Ensuring consistent installations, handling app dependencies, and providing a smooth update experience were areas ripe for improvement. We sought a solution that could:

• Standardize the packaging format.
• Simplify the end-user installation experience.
• Enable robust and reliable updates.
• Improve security by using containerized installations.

The Solution

To meet these requirements, we implemented an MSIX packaging pipeline, leveraging MakeAppx – a command-line tool for creating, encrypting, and signing app packages. This integration ensures that our application artifacts are transformed into a single, secure MSIX package, ready for distribution.

Here’s a conceptual Python script demonstrating how a build process might orchestrate the packaging:

import subprocess
import os

def create_msix_package(project_root: str, build_output_dir: str, app_name: str, version: str):
    """Orchestrates the steps to build and package an MSIX application."""
    print(f"Starting MSIX packaging for {app_name} v{version}...")

    # Step 1: Ensure application artifacts are built
    print("1. Verifying application build artifacts...")
    # In a real scenario, this would involve a prior build step (e.g., 'npm run build')
    # For this example, we assume artifacts are already in build_output_dir
    if not os.path.exists(build_output_dir):
        raise FileNotFoundError(f"Build output directory not found: {build_output_dir}")

    # Step 2: Prepare the package layout and manifest
    print("2. Preparing package assets and manifest...")
    package_temp_dir = os.path.join(project_root, "_msix_temp")
    os.makedirs(package_temp_dir, exist_ok=True)

    # Simulate copying necessary files (executables, assets, AppxManifest.xml)
    # Example: copy_files(source=build_output_dir, destination=package_temp_dir)
    # For MakeAppx, AppxManifest.xml is crucial at the root of package_temp_dir

    # Step 3: Invoke MakeAppx.exe to create the .msix package
    print(f"3. Invoking MakeAppx.exe to create package at {build_output_dir}...")
    output_msix_path = os.path.join(build_output_dir, f"{app_name}-{version}.msix")

    try:
        # Simplified command structure for demonstration
        # Actual MakeAppx.exe command would include /d for source dir and /p for output path
        # subprocess.run([
        #     "MakeAppx.exe", "pack",
        #     "/d", package_temp_dir,
        #     "/p", output_msix_path,
        #     "/v" # verbose output
        # ], check=True, capture_output=True, text=True)
        print(f"  Simulating MakeAppx.exe pack /d {package_temp_dir} /p {output_msix_path}")
        print(f"  Generated MSIX package: {output_msix_path}")

    except subprocess.CalledProcessError as e:
        print(f"Error creating MSIX package: {e.stderr}")
        raise
    finally:
        # Clean up temporary directory
        # shutil.rmtree(package_temp_dir)
        print("4. Packaging complete.")

if __name__ == "__main__":
    # Example usage
    current_project_root = os.path.dirname(os.path.abspath(__file__))
    output_dir_for_build = os.path.join(current_project_root, "dist")

    # Ensure the output directory exists
    os.makedirs(output_dir_for_build, exist_ok=True)

    try:
        create_msix_package(
            project_root=current_project_root,
            build_output_dir=output_dir_for_build,
            app_name="ERPApp",
            version="1.0.0"
        )
    except Exception as e:
        print(f"Packaging failed: {e}")

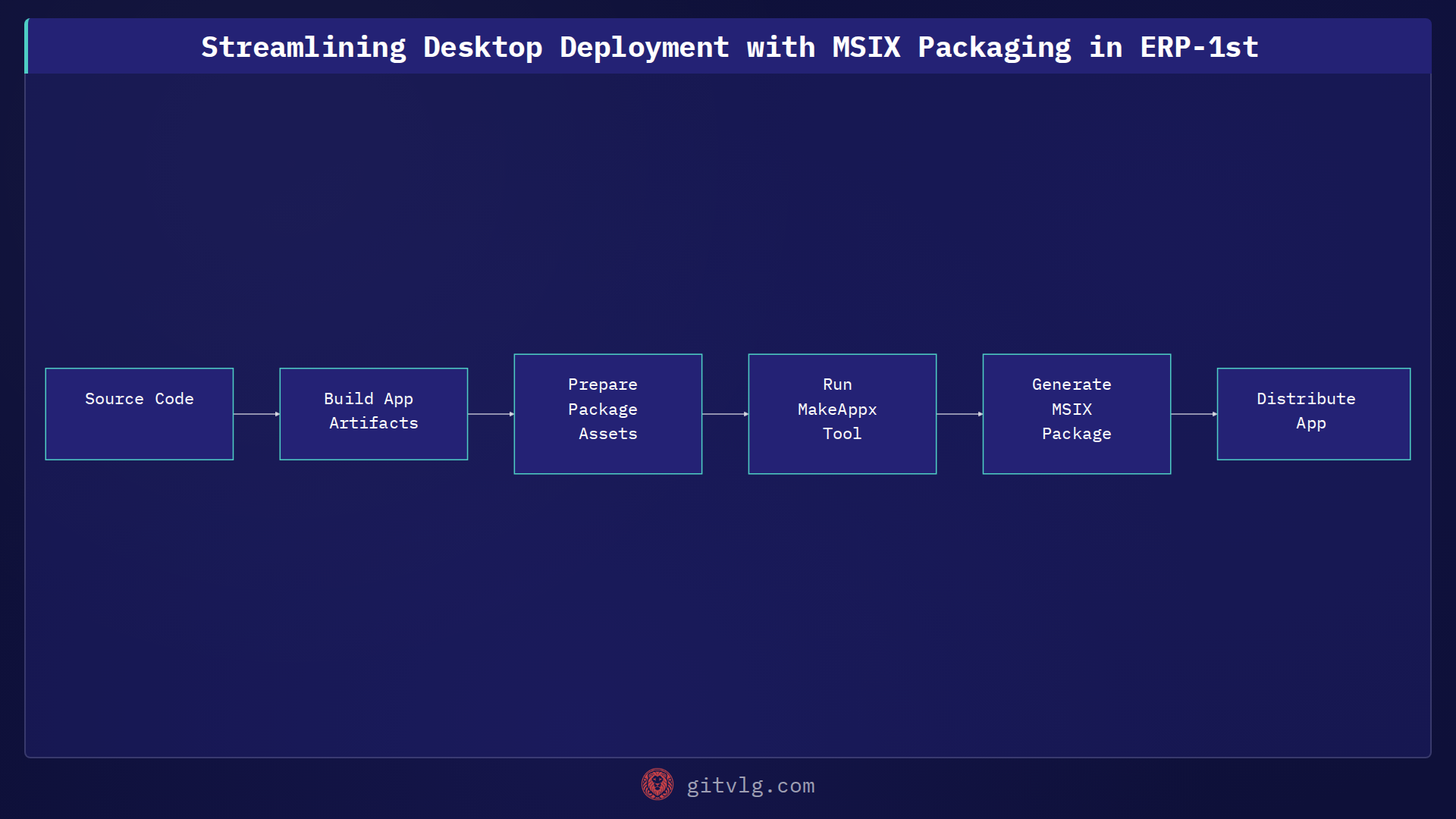

This script outlines the logical flow: ensuring the application is built, preparing the necessary files in a structured format, and then invoking MakeAppx.exe to compile these into a .msix file. This process is typically integrated into a Continuous Integration (CI) pipeline, such as GitHub Actions, for automated execution upon new commits.

Key Decisions

1. Embracing MSIX: Choosing MSIX provides a modern, secure, and user-friendly installation experience, aligning with current Windows ecosystem standards.
2. Using MakeAppx: This Microsoft-provided tool offers direct control over the packaging process and is robust for integrating into automated pipelines.
3. Pipeline Integration: The packaging step is integrated into our existing build process, ensuring every release candidate benefits from this modern packaging format.

Results

This new pipeline significantly streamlines the deployment of the ERP-1st application. Users will experience simpler installations, reliable updates, and cleaner uninstallation. For developers, it means less time spent on deployment headaches and more focus on feature development.

Lessons Learned

Modernizing deployment processes is crucial for desktop applications. Investing in formats like MSIX not only improves the user experience but also enhances the overall security and maintainability of the software lifecycle. Automating these steps through CI/CD pipelines is key to realizing these benefits efficiently and consistently.
